$2 586
RENAULT CLIO SADEV 5 Speed Dog Box
ADDED: February 21, 2026
Car Details
|
|
|
|||||||||
|
|
|
Seller Note
Contact E-mail : rumenigre@weibsvolk.org

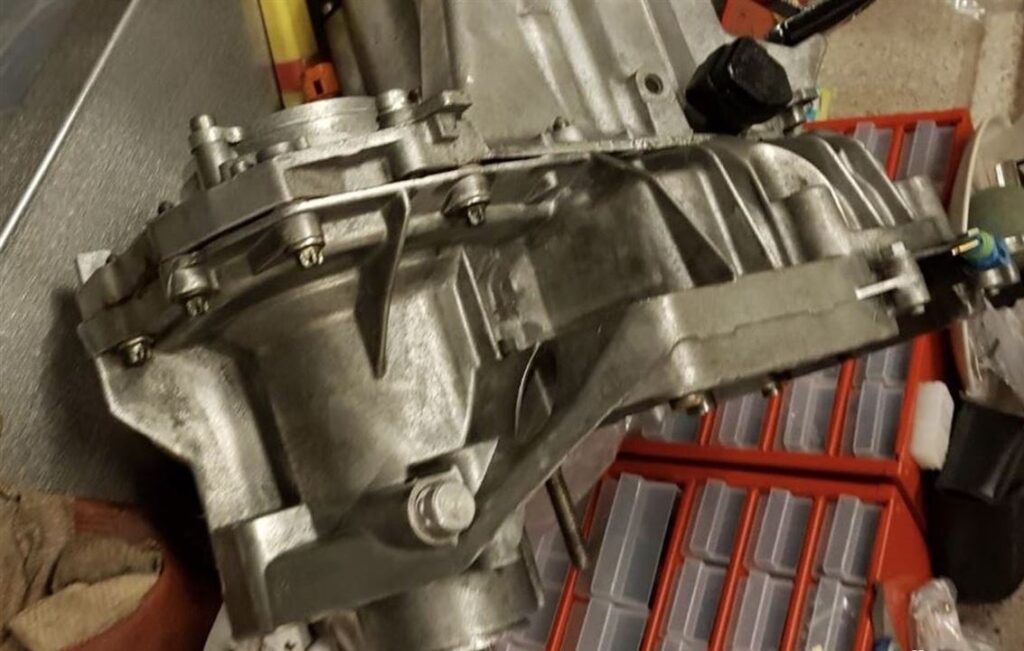

RENAULT CLIO - SADEV 5 speed Competition Dog type Gearbox
H pattern dog box in JC5 casing. Semi helical gears. Plate type Sadev diff same as fitted to ST75 sequential boxes. Similar to the group N boxes of the era but this one actually built for Rob Collards BTCC Clio. Strengthened outer casing with bearing support. Input shaft spline is the much stronger Ford 1" 23 teeth. Final Drive 4.750. Gearing 1st 1.833; 2nd 1.429; 3rd 1.208; 4th 1.043; 5th 0.917.
RPM and MPH data available on request.
Sold with steel lightweight billet flywheel, paddle clutch assembly and matching H/D race driveshaft’s to fit 182 or 172 set up.
